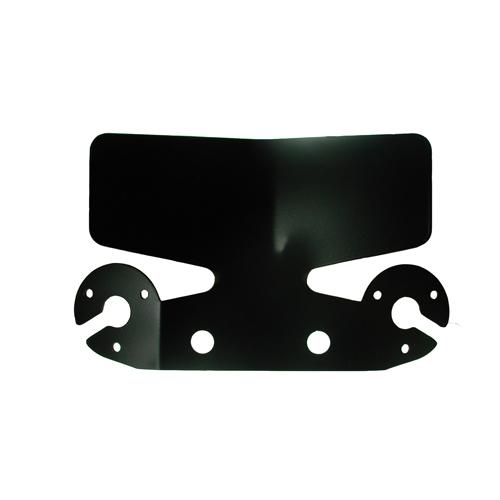

Tow-Tekta black bumper protector with two socket mounting positions for N’ and S’ electrics. Protects bumpers from damage when coupled with a trailer or caravan
Ideal for 7 Pin 12N&S Type
Protection for modern plastic bumpers
Overall height 180mm
Overall width 248mm
90mm mounting space
1. Remove towball and electric sockets from the towbar
2. Fit the Tow-Tekta between the towball and towbar. If using the existing bolts, the ends of the bolts should protrude through the nuts when tightened. If longer bolts are required they must be BS3692 M16 high tensile towball bolts grade 8.8. New shakeproof washers or nylon locking nuts grade 8 should be used on all occasions. Bolts should be tightened to 240Nm.
3. The electrical sockets can be refitted without the need to rewire, using slots provided in the socket mountings
